The Ultimate Industrial Vibration Sensor & Accelerometer Cabling Guide: Noise Suppression, MIL-C-5015 vs M12 vs 10-32 Microdot, and Multi-Channel DAQ Cable Reduction in India
A comprehensive technical handbook for condition monitoring engineers, plant technicians, and NVH test laboratories on selecting, shielding, and routing vibration sensor cables and multi-channel DAQ reduction systems.
Precision Signal Transmission for Predictive Maintenance & Condition Monitoring
In predictive maintenance (PdM) and vibration analysis, the measurement chain is only as dependable as the sensor cable connecting the accelerometer to your data acquisition (DAQ) analyzer. Discover how BCNT Technologies designs zero-noise, armored, and multi-channel cable reduction solutions engineered for India's harshest industrial environments—backed by our industry-leading 3-Year Comprehensive Manufacturer Warranty.
1 The Critical Role of Sensor Cabling in Vibration Monitoring
Industrial piezoelectric accelerometers, IEPE/ICP® vibration transmitters, and proximity probes generate microvolt or low-millivolt signals. When routed through harsh industrial plants—near high-power variable frequency drives (VFDs), heavy induction motors, arc welding stations, and automated conveyor systems—these tiny analog signals are vulnerable to electromagnetic interference (EMI), radio frequency interference (RFI), and ground loop distortions.
Selecting the wrong cable jacket material or improperly shielded assembly leads to phantom vibration peaks, false alarms, and costly unscheduled downtime.
2 Standard Sensor Connector Ecosystems & Product Match
Different measurement environments require dedicated connector form-factors. Below is an engineering breakdown of standard connector interfaces manufactured by BCNT Technologies:
MIL-C-5015 2-Pin to BNC Vibration Cables
The industry gold standard for general plant machinery (turbines, blowers, cooling towers). Built with reinforced strain relief, oil-resistant polyurethane jacket, and stainless steel armor options.
- Standard: BCNT-AJ-C50-BN (5m / 10m / Custom)
- Armored Option: BCNT-AJ-C50-BN-005 for crushing protection
- Temp Range: -40°C to +125°C
M12 Circular Accelerometer Cables
IP67/IP68 sealed circular connector assembly tailored for factory automation lines, CNC machine spindles, and multi-axis triaxial accelerometers.
- Model: BCNT-AJ-M-BN-005 (M12 A-Coded to BNC)
- High-flex continuous drag-chain rated PUR jacket
- Gold-plated contacts for zero contact resistance
10-32 UNF Microdot Low-Noise Coaxial
Ultra-miniature threaded coaxial connectors for miniature teardrop accelerometers, modal impact testing, acoustic testing, and aerospace R&D test rigs.
- Standard: BCNT-AJ-MI-B-005 (10-32 Microdot Male to BNC)
- Miniature Flexible: BCNT-AJ-MI-BN-005 (RG178 Coaxial)
- Specially treated with carbon-loaded dielectric
Magnetic & Cementing Mounting Accessories
Mechanical coupling is crucial for accurate high-frequency vibration response. BCNT manufactures rare-earth magnetic pads and stainless steel cementing bases.
- BCNT-AJ-M-0: Heavy-Duty 2-Pole Rare-Earth Magnetic Base
- BCNT-AJ-CP-001: Accelerometer Cementing Stud Pad
- Eliminates resonant distortion up to 10 kHz
3 Triboelectric Noise Suppression: How BCNT Eliminates Motion Artifacts
When standard coaxial cables vibrate or bend during operation, frictional motion between the outer copper braid and the inner dielectric insulator generates electrostatic surface charges. In high-impedance charge-mode or high-sensitivity IEPE vibration measurements, this triboelectric effect creates false low-frequency noise spikes ("cable whipping noise") that masquerade as bearing defects or unbalance.
The BCNT Low-Noise Engineering Process:
BCNT Technologies applies a specialized semi-conductive layer (carbon-loaded fluoropolymer) between the PTFE insulation and the shielding braid. This conductive coating instantly dissipates friction-induced electrostatic charges to ground, maintaining a baseline signal-to-noise ratio exceeding -120 dB even under vigorous multi-axis mechanical vibration.
4 High-Density Sensor Cable Reduction: 32CH & 64CH Signal Interface Modules
In modern wind tunnels, gas turbine test cells, vibration shaker tables, and structural health monitoring (SHM) systems, test engineers frequently operate 32, 64, or 128 simultaneous vibration channels. Running individual BNC cables across 50 to 100 meters creates severe cable clutter, ground loops, elevated setup times, and vulnerable points of mechanical failure.

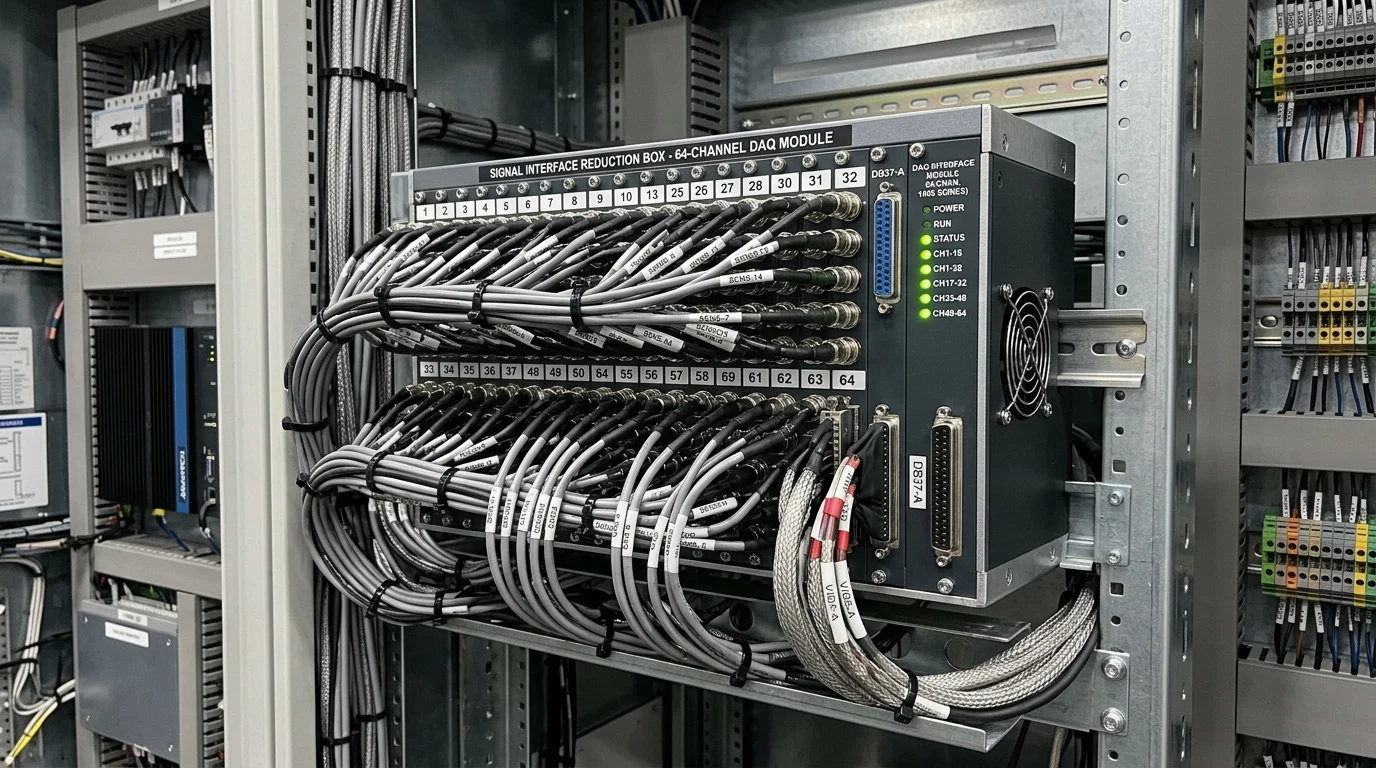

BCNT Technologies solves this with our Signal Interface Module (SIM) Cable Reduction Boxes. Featuring an all-aluminum shielded enclosure, isolated BNC jacks, internal star-grounding architecture, and multi-pin trunk connectors (DB37 / MASS), a single BCNT reduction box consolidates up to 64 sensor lines into a single multi-core trunk line.
Need Multi-Channel DAQ Consolidation for Your Test Bench?
Choose between our 32-Channel and 64-Channel Signal Interface Reduction Modules. Custom pinouts and panel racks available.
5 Technical Specification & Jacket Comparison Matrix
| Cable Series | Conductor & Dielectric | Shielding Topology | Temp Rating | Target Environment |
|---|---|---|---|---|
| BCNT MIL-C-5015 Series | Stranded OFC + Cross-linked Polyethylene | 100% Alu-Foil + 95% Tinned Copper Braid | -40°C to +125°C | Pumps, motors, industrial fans, paper mills |
| BCNT Armored MIL Series | Stranded OFC + Heavy PUR Outer + SS Armor | Double Braided + 304 Stainless Armor | -40°C to +125°C | Heavy mining, cement plants, hot steel mills |
| BCNT Low-Noise 10-32 Series | Silver-Plated Copper + Low-Noise PTFE | Carbon Coated + 98% Silver Braid | -55°C to +200°C | High-frequency modal analysis, NVH R&D |
| BCNT M12 Sensor Series | OFC Twisted Pairs + TPE Core | Braided Shield + Drain Wire | -25°C to +90°C | Robotic arms, machine tool spindles, Industry 4.0 |
Custom Sensor Cable Assemblies & Stage Multicores
Whether you need a single replacement M12 accelerometer cable, a custom 100-meter armored MIL-C-5015 run, or a high-density 64-channel DAQ reduction rack, BCNT Technologies manufactures to your exact mechanical, thermal, and pinout specifications in Kerala, India.
