Selecting Industrial Ethernet & Drag Chain Cables for 10 Million Continuous Flex Cycles (PUR vs PVC vs TPE)
Standard stationary cables fail within weeks in drag chains. Discover how stranded copper stranding, inner core bundling, and PUR jackets achieve 10 million bend cycles.
Continuous flex drag chains (cable carriers) on high-speed CNC machines, automated gantry systems, and robotic pick-and-place arms subject cables to millions of alternating bending and tensile stresses.
1. Why Standard Industrial Cables Fail in Drag Chains
Standard stationary PVC cables suffer from "corkscrewing," conductor core breakage, and outer jacket cracking after fewer than 100,000 motion cycles. When conductors fatigue internally, intermittent network disconnects occur, causing unpredictable machine emergency stops (E-Stops).
2. Material Comparison: PUR vs PVC vs TPE Outer Jackets
| Property | PUR (Polyurethane) | Standard PVC | TPE (Thermoplastic) |
|---|---|---|---|
| Continuous Flex Cycles | Up to 10 Million | < 250,000 | Up to 10 Million |
| Oil & Coolant Resistance | Excellent (ASTM Oil #1/#2) | Moderate / Degrades | Excellent |
| Minimum Bend Radius | 7.5 x Outer Diameter | 15 x Outer Diameter | 7.5 x Outer Diameter |
| Halogen-Free & Flame Retardant | Yes (LSZH) | No (Emits toxic gas) | Yes |

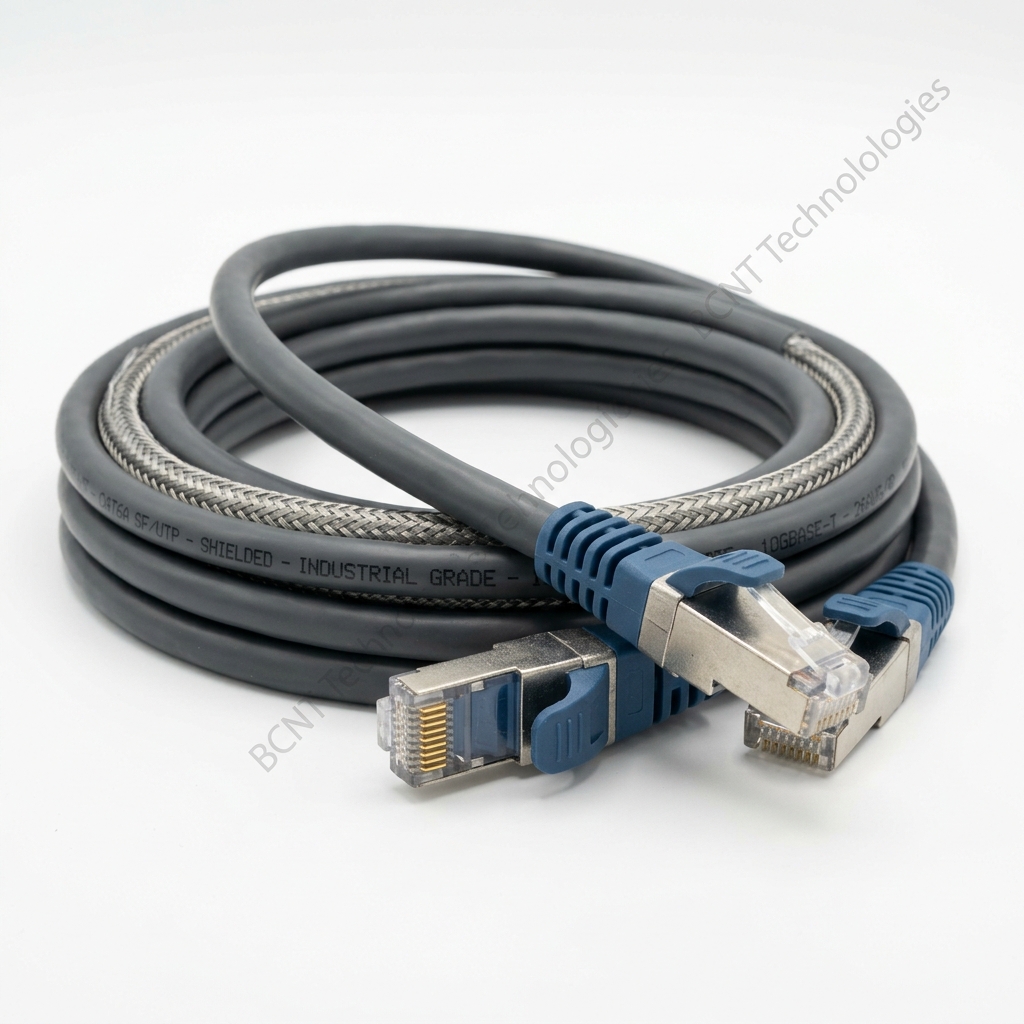

3. BCNT High-Flex Cat6 SF/UTP Industrial Cable
BCNT Technologies engineers the Cat6 SF/UTP High-Speed Industrial Cable specifically for factory floor drag chains. With double shielding (tinned copper braid + aluminum foil) and oil-resistant PUR jacket, it delivers stable 10 Gbps Ethernet throughput even in the presence of heavy electrical noise from nearby servo motor drives.
Upgrade Your Machine Drag Chains with 3-Year Warranty
Eliminate unexpected plant downtime. Choose BCNT continuous-flex industrial cables engineered and tested in Kerala, India.
