Permanent Magnetic Lifter - Strong PML 600 Permanent Lifting
Precision Mechanical Mounting Hardware • 3-Year Warranty

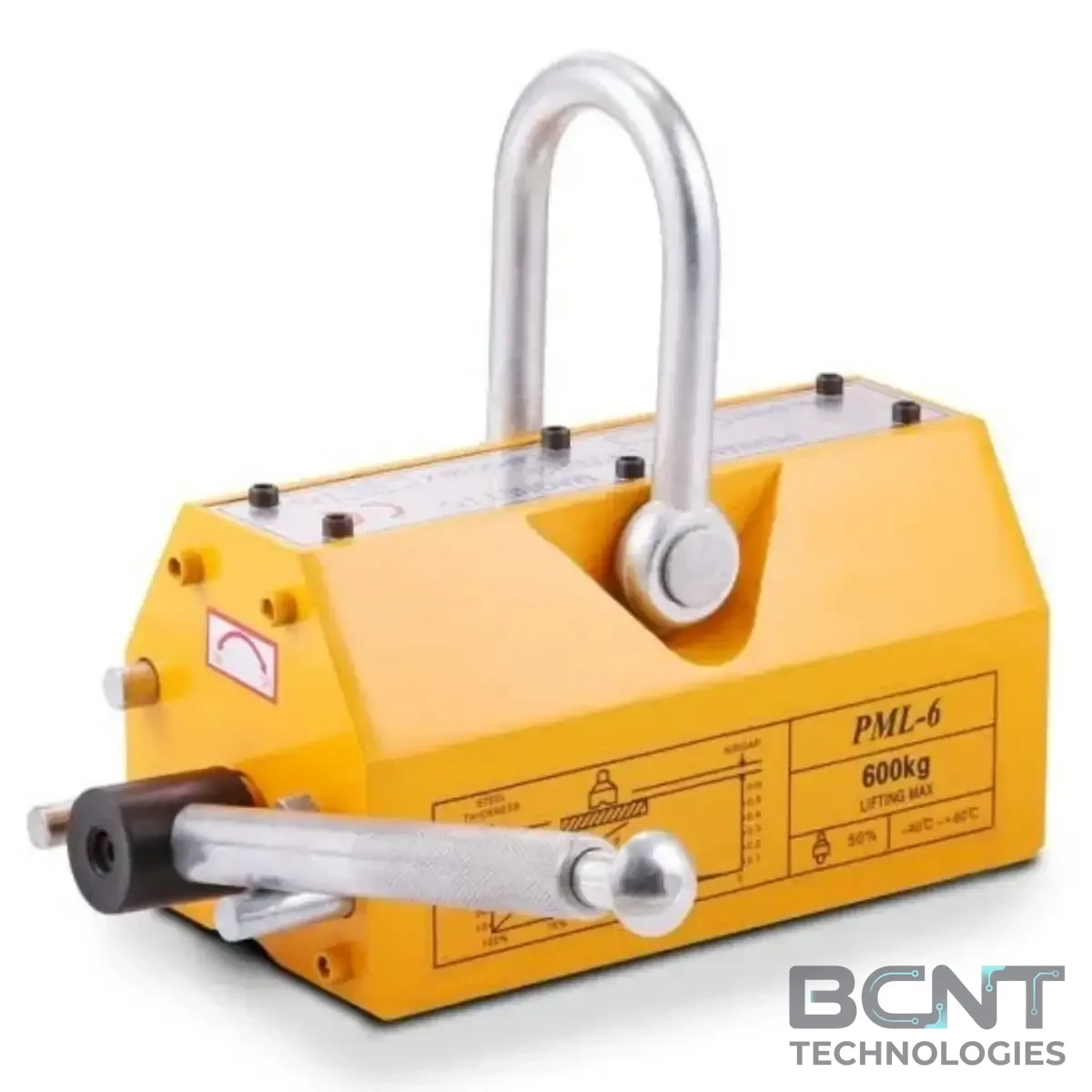

PML-600 Permanent Lifting Magnet
- Model: PML-600
- Load Capacity: 600kgs
- Max Pull of Strength: 1500KgF
- Dimension: 210 x 115 x 116mm
- Length of Handle: 230mm
- Min Plate Thickness: > 15mm
- Job Size Range: (L)2500 x (W)2000 x (Ø)50-300
- Net Weight: 19kgs
- Gross Weight: 21Kgs
- Temperature: -40 ℃~80 ℃
600kg lifting magnet is mainly used to lift steel plates, blocks, press Moulds etc. and load / unload in machines during handling operation. They can hoist moving iron blocks and other magnetic material. They are easy to operation and safe to handle and hence are widely used as lifting devices in factories, docks, warehouses and transportation industries. By using them, you can improve your working condition and increase your working efficiency.
- Zero electricity required
- Forged hook for high mechanical strength and durability
- Precision machined assembly block in a single piece to enhance efficiency
- Designed for safety and lightweight
- Full proof locking system with an easy to use “on” and “off” lever
- 3 times rated capacity factor of safety to meet the safety standards as per international standards for under the hook devices
- No Maintenance and Operating cost
- No damage to the workpiece being lifted
- Very Compact and durable
PML-600 Permanent Lifting Magnet have a strong magnetic field path produced by NdFeB magnetic materials. “On” and “Off” of the magnetic path is controlled by turning the lever manually. There are shackles on the top of Magnetic Lifter for lifting.
NOTED: Product Images are shown for illustrative purposes only and may differ from actual product.
Pricing & Procurement
3-Year Factory Warranty included on all orders
Technical Specifications
The Engineering Behind This Product
Explore the mathematical mechanics, metallurgical choices, resonance dynamics, and signal integrity standards engineered into every BCNT component.
1. Continuous Flex Drag Chain Mechanics (10 Million Cycles)
Standard stationary cables fail in robotic gantry arms due to corkscrewing and conductor fatigue. BCNT high-flex cables employ short-pitch stranded copper bundles with low-friction sliding separators and oil-resistant PUR outer sheaths:
Engineered for high-acceleration gantry carriers (up to 50 m/s²), resisting tensile and torsional fatigue.
Eliminates inductive noise from nearby VFD PWM motor drives, preserving clean data communication.
2. Triboelectric Noise & Environmental Sealing
Low-Noise Graphite Layer:
Dissipates triboelectric friction charges to <1 mV, eliminating false vibration alarms in piezoelectric sensor lines.
IP67 / IP68 Waterproof Overmolding:
Direct polyurethane overmolded backshells prevent coolant, water, and oil ingress at connector joints.
Detailed Engineering & Procurement Documentation
1. Precision Mechanical Mounting & Metrology Overview
The Permanent Magnetic Lifter - Strong PML 600 Permanent Lifting (SKU: PML-600) is an industrial-grade precision accelerometer mounting magnet engineered and CNC-machined by BCNT Engineering in Kerala, India. Specifically developed for vibration analysts, predictive maintenance (PdM) teams, condition monitoring engineers, and NVH test laboratories, this mounting hardware ensures rigid, distortion-free mechanical coupling between industrial machinery and dynamic piezoelectric sensors.
Engineered from precision CNC-machined 303/304 austenitic stainless steel with an internal high-remanence sintered Rare-Earth Neodymium-Iron-Boron (NdFeB Grade N45/N52) core, it provides exceptional clamping pull force to maximize acoustic contact stiffness ($k$) and eliminate high-frequency signal attenuation during route-based walkaround data collection.
2. Comprehensive Engineering Specifications
Detailed mechanical tolerances, thread options, pull force ratings, and ISO 5348 metrology parameters for Permanent Magnetic Lifter - Strong PML 600 Permanent Lifting:
| Specification Parameter | Technical Value / Compliance |
|---|---|
| Material | Neodymium-Iron-Boron (NdFeB Rare-Earth) |
| Coating / Plating | Triple Layer Ni-Cu-Ni (Nickel-Copper-Nickel) |
| Magnetization | Axial / Through Thickness |
| Grade | N35 / N52 Industrial |
| Max Operating Temp | 80°C (176°F) |
| Applications | Permanent Lifting Magnet |
3. ISO 5348:2021 Mounted Resonance ($f_n$) & Metrology Dynamics
ISO 5348 §4.2 CompliantIn accordance with ISO 5348 (Mechanical Mounting of Accelerometers), attaching an accelerometer via a magnetic mounting base creates an elastic spring-mass dynamic interface. The natural mounted resonance frequency ($f_n$) governs the upper usable linear flat measurement bandwidth (±5% accuracy limit, typically ~20% to 50% of $f_n$):
Where kinterface is the acoustic contact stiffness and mbase is the magnet mass.
4. Key Industrial Sectors & Machinery Applications
5. Vibration Sensor Mounting FAQs
Direct stud mounting yields the highest natural frequency (~32 kHz), making it ideal for permanent continuous online monitoring. Flat rare-earth neodymium magnetic mounts paired with silicone coupling fluid achieve ~14 kHz resonance and up to 8.0 kHz linear flat response, providing the ideal portable solution for walkaround predictive maintenance surveys without drilling machinery casings.
Select the thread matching your vibration accelerometer's mounting stud. 1/4-28 UNF is the global standard for industrial general-purpose accelerometers (CTC, Wilcoxon, Hansford, PCB, SKF). Metric M6 and M8 are widely used in European/Japanese machinery transmitters. 10-32 UNF is standard for miniature, high-frequency, and triaxial teardrop sensors.
Never allow strong neodymium magnets to snap directly straight down onto steel surfaces, as the metal-to-metal impact can generate acoustic shock exceeding 5,000g, causing signal saturation or shear crystal fracture. Always touch the edge of the magnet to the machine target first, then gently roll the base into place (the ISO 5348 "angle-roll" technique).
